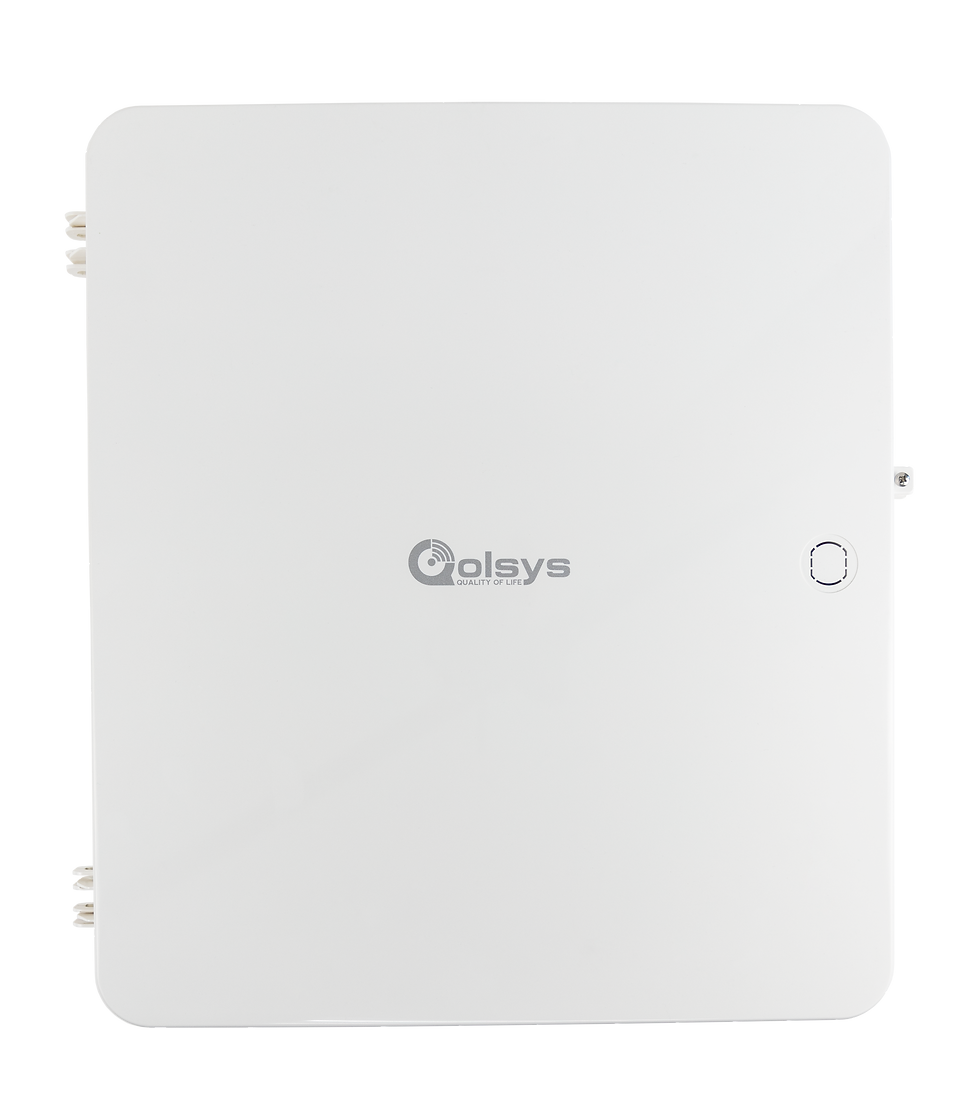

Qolsys IQ Hardwire 16-F (Large Enclosure) (QS7134-840)


Description
The Qolsys IQ Hardwire 16-F (Large Enclosure) is a hardwired-to-wireless integration module designed to connect existing security and smoke detector zones to compatible IQ Panels. Housed in a larger enclosure with expanded wiring space, it provides a flexible solution for upgrades and takeovers. With encrypted S-Line communication, onboard diagnostics, and support for multiple device types, it enables seamless integration of traditional wired systems into modern smart security platforms.

Key Features
Integrates hardwired security and smoke detector zones
Large enclosure with ample wiring space and battery holder
Expansion slot for an additional module
Encrypted S-Line communication with panel
Supports up to 10 two-wire smoke detectors
LED indicators for each zone for easy installation and troubleshooting
Supports Normally Open (NO) and Normally Closed (NC) contacts
Supports powered zones (motion detectors, glass break sensors, etc.)
Up to 500 mA auxiliary power output
Backup battery charging with supervision and outage recovery
Onboard siren relay

Specifications
Input Voltage: 16.0 VDC plug-in transformer
Backup Battery: 12VDC, up to 5Ah (not included)
Dimensions: 16” x 14” x 3”
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Humidity: Up to 95% RH
Input Zones: 15 (NO or NC)
Smoke Zone: 1 two-wire loop (up to 10 detectors)
Supported Smoke Detectors: System Sensor® 2W-B, 2WT-B, 2WTA-B
EOL Supervision: 4.7K Ohm (included) or 1K–10K Ohm (resistor mode dependent)
Auxiliary Output: 12VDC @ 500 mA max
Relay Contact: 60VDC / 1A max (siren control)
Tamper Zone: Case tamper (no resistor required)

Compatibility
Qolsys IQ Panels with S-Line support
Important Notes
Designed for integrating existing wired systems into wireless platforms
Backup battery not included
Smoke detector models should not be mixed on the same loop
Supports both security and life safety devices within specified limits
